UCEED2026MediummsqSpatial Reasoningtop vieworthographic projection3D to 2Dspatial reasoning
msqQ15

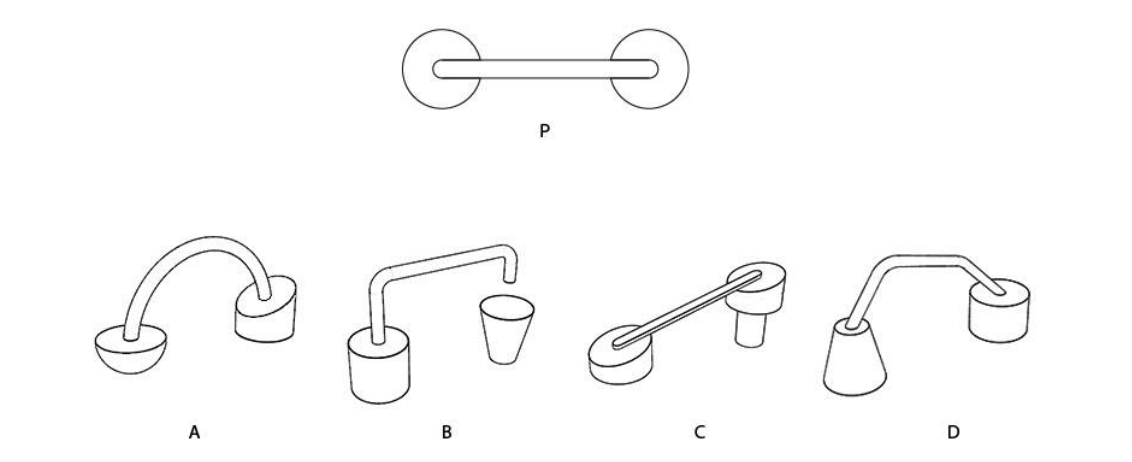

Image P shows an object as seen from the top. Which of the objects given below will appear as shown in image P when viewed from the top? Consider all the objects are made with opaque solids.
